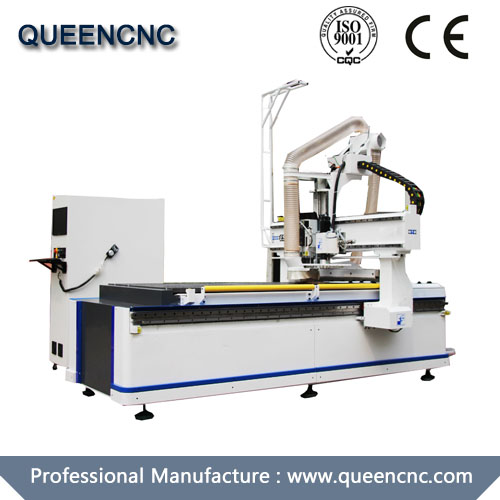

| Model (option) | QN1325L |
| X，Y，Z axis working area | 1300*2500mm |
| Guide rail | Square guide linear rail |
| X,Y structure | High-precision rack and pinion transmission |
| Z axis | ball screw |
| Control system | NK280B studio control system |
| Whole structure | Cast steel |
| Max.engraving speed | 30m/min |
| Maxing cutting speed | 20m/min |
| Resolution | 0.01mm |
| Processing accuracy | <0.05mm |
| Wood holding | Vacuum absorption(by suction) |
| Competitive software | AutoCAD,Artcam,Photoshop,Type3,Artcut,Ucancam,powermill |
| Imagine format graphic | BMP,GIF,JPGE,PCX,TGA,TIFF,PTLCDR,DMG,DXF, |
| Spindle power | 9KW ATC air cooling spindle |
| Spindle rotating speed | 6000-24000rmp/min |
| Tool magazine | Linear ATC system ,whit 8 pieces of cutters |
| Diameter of cutter | φ3.175~φ20 |
| Driving system | Delta servo system |
| Operate language | G code,plt,mmg,uoo,bmp,F/S |
| Working voltage | AC380V/50Hz |
| Running environment | Temperature:0-45;Humidity:30%~70% |
| With Optional parts | Vacuum worktable,dust collector |
| Machine parts |
9kw air cooled spindle servo motor and driver NK260 studio control system squarer guide rail inverter equipment 7.5kw vacuum pump and vacuum worktable oil lubricating system automatic tool measurement 8 tool holder and collets control box/wrench/brush user manual /CD video/design software |
