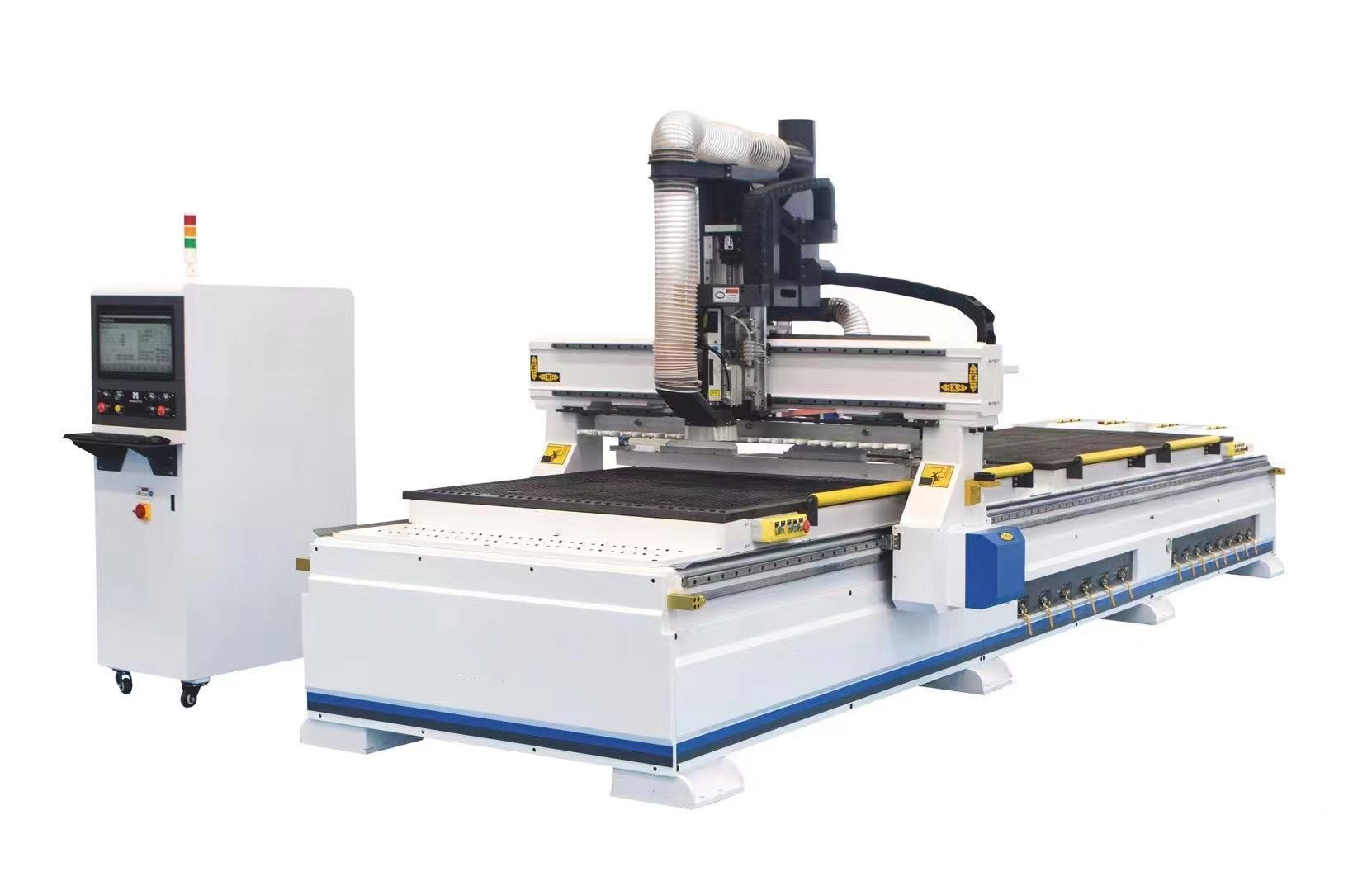

| Model (option) | QN2040L/QN1325L/QN2030L/QN2128L |
| X，Y，Z axis working area | 2000*3000*200mm |
| Guide rail | 30 Square guide linear rail from taiwan |
| X,Y structure | High-precision rack and pinion transmission |
| Z axis | ball screw |
| Control system | LNC control |
| Whole structure | Steel Welded |
| Max rapid travelling speed | 75m/min |
| Maxing cutting speed | 25m/min |
| Resolution | 0.01mm |
| Processing accuracy | <0.05mm |
| Wood holding | Vacuum table |
| Competitive software | AutoCAD,Artcam,Photoshop,Type3,Artcut,Ucancam,powermill |
| Imagine format graphic | BMP,GIF,JPGE,PCX,TGA,TIFF,PTLCDR,DMG,DXF |
| Spindle power (you can choose) | 9kw HQD ATC spindle |
| Spindle rotating speed | 6000-24000rmp/min |
| Tool magazine | 12 pieces of cutters |
| Diameter of cutter | φ3.175~φ25 |
| Driving system | servo system |
| Operate language | G code,plt,mmg,uoo,bmp,F/S |
| Working voltage | AC380V/50Hz or 220V |
| Running environment | Temperature:0-45;Humidity:30%~70% |
| With Optional parts | Vacuum worktable |
| Machine parts |
9kw air HQD ATC cooled spindle Leadshine servo motor and driver LNC control system Taiwan30 squarer guide rail 11KW fuling inverter equipment Automatic oil lubricating system automatic tool measurement 12 tool holder and collets 2 bags dust collector control box/wrench/brush |
