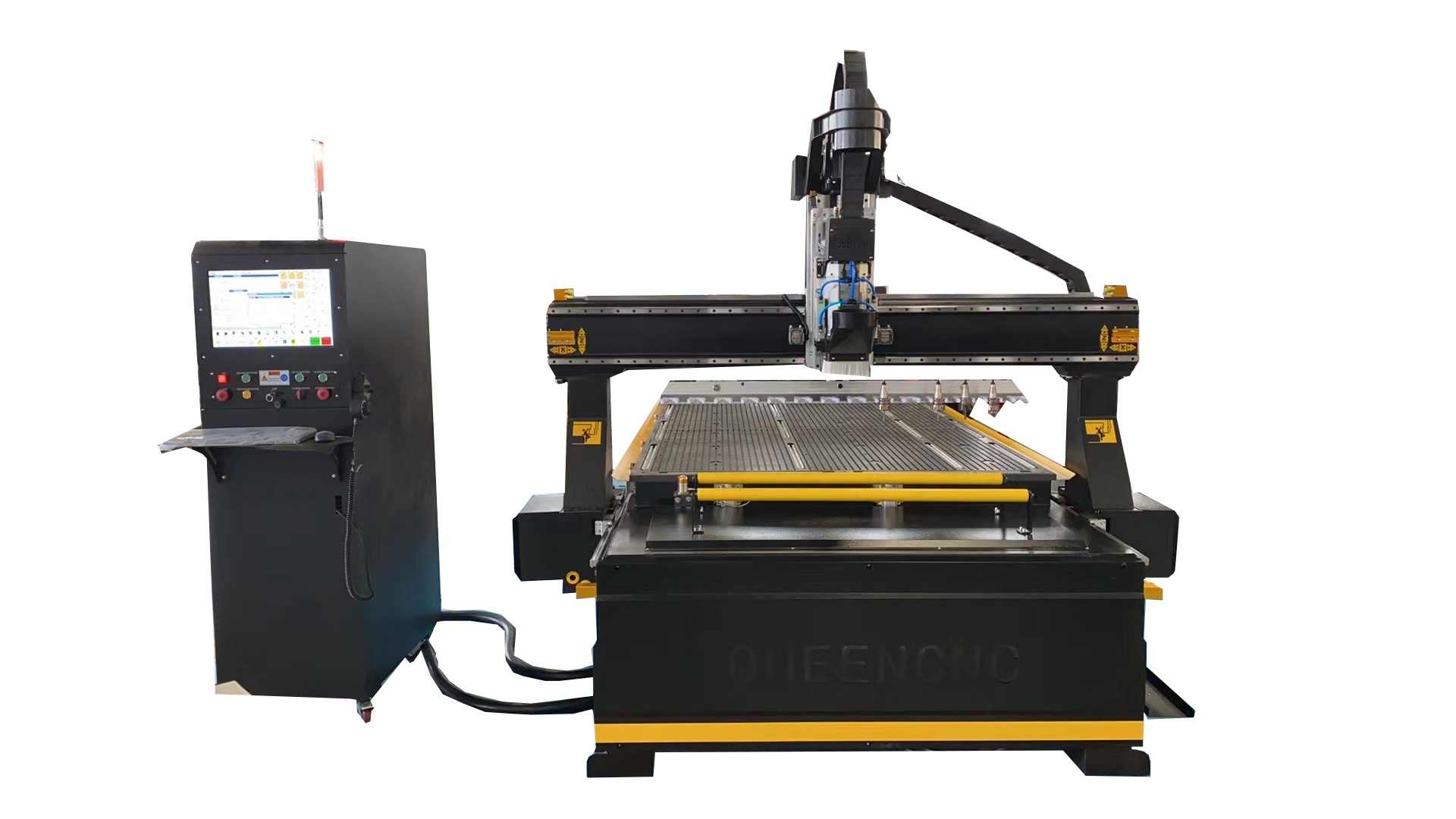

| Model (option) | QN1325 |
| X，Y，Z axis working area | 1300*2500*250mm |
| Guide rail | Square guide linear rail |
| X,Y structure | High-precision rack and pinion transmission |
| Z axis | ball screw |
| Control system | LNC control system |
| Whole structure | Cast steel |
| Max.Rapid Travelling speed | 70m/min |
| Maxing cutting speed | 20m/min |
| Resolution | 0.01mm |
| Processing accuracy | <0.05mm |
| Wood holding | Vacuum absorption(Without vacuum pump) |
| Competitive software | AutoCAD,Artcam,Photoshop,Type3,Artcut,Ucancam,powermill |
| Imagine format graphic | BMP,GIF,JPGE,PCX,TGA,TIFF,PTLCDR,DMG,DXF, |
| Spindle power | 9KW HQD ATC air cooling spindle |
| Spindle rotating speed | 6000-24000rmp/min |
| Tool magazine | Linear ATC system ,whit 12 pieces of cutters |
| Diameter of cutter | φ3.175~φ25 |
| Driving system | Leadshine servo system |
| Operate language | G code,plt,mmg,uoo,bmp,F/S |
| Working voltage | AC380V/50Hz or 220V |
| Running environment | Temperature:0-45;Humidity:30%~70% |
| With Optional parts | Vacuum worktable,dust collector |

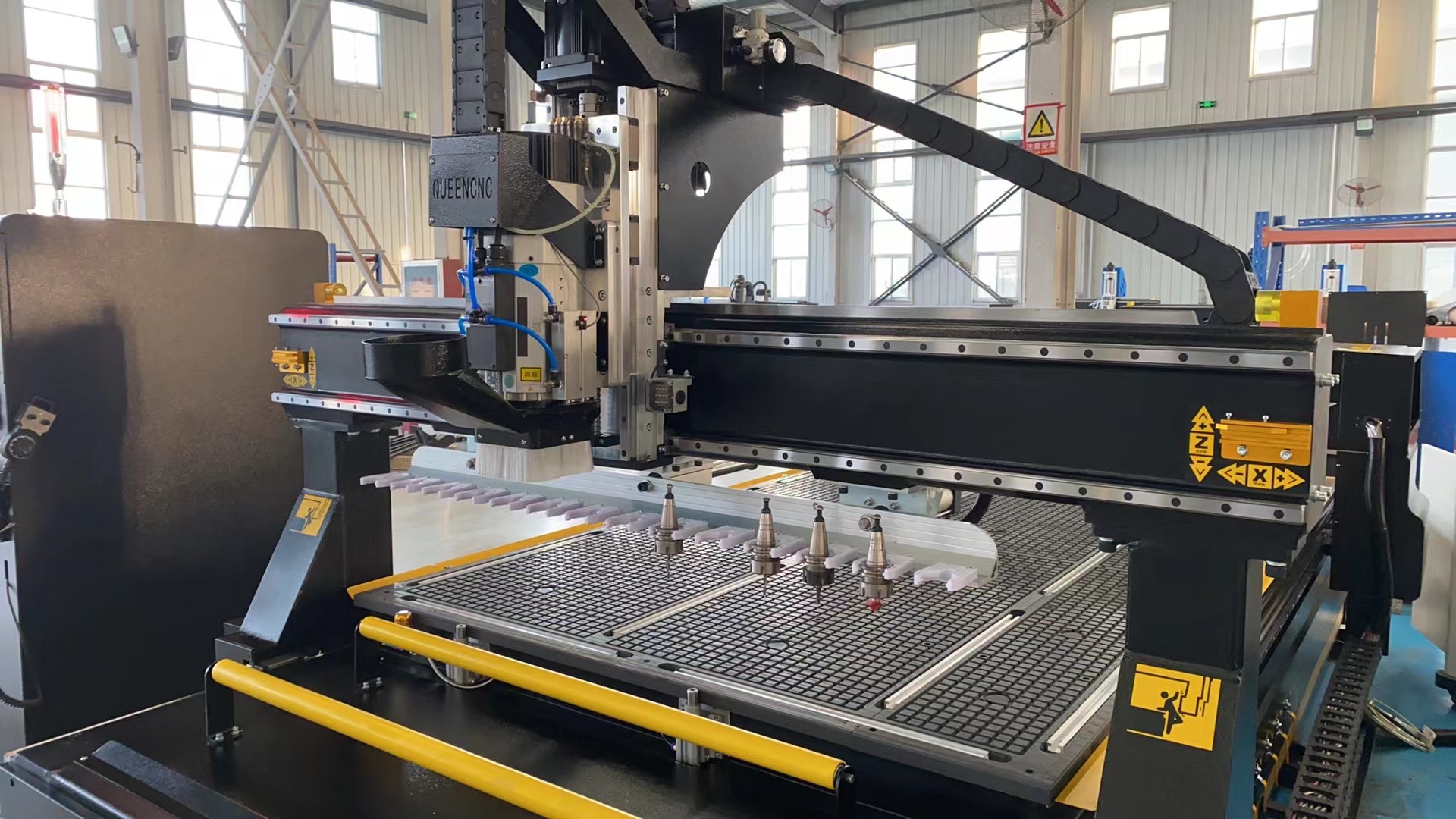

| Machine parts |
9kw HQD air cooled spindle Leadshine servo motor and drive LNC control system Taiwan 30 squarer guide rails 11KW inverter equipment Automatic oil lubricating system automatic tool measurement Automatic oil mist system 12 tool holder and collets control box/wrench/brush user manual /CD video/design software |

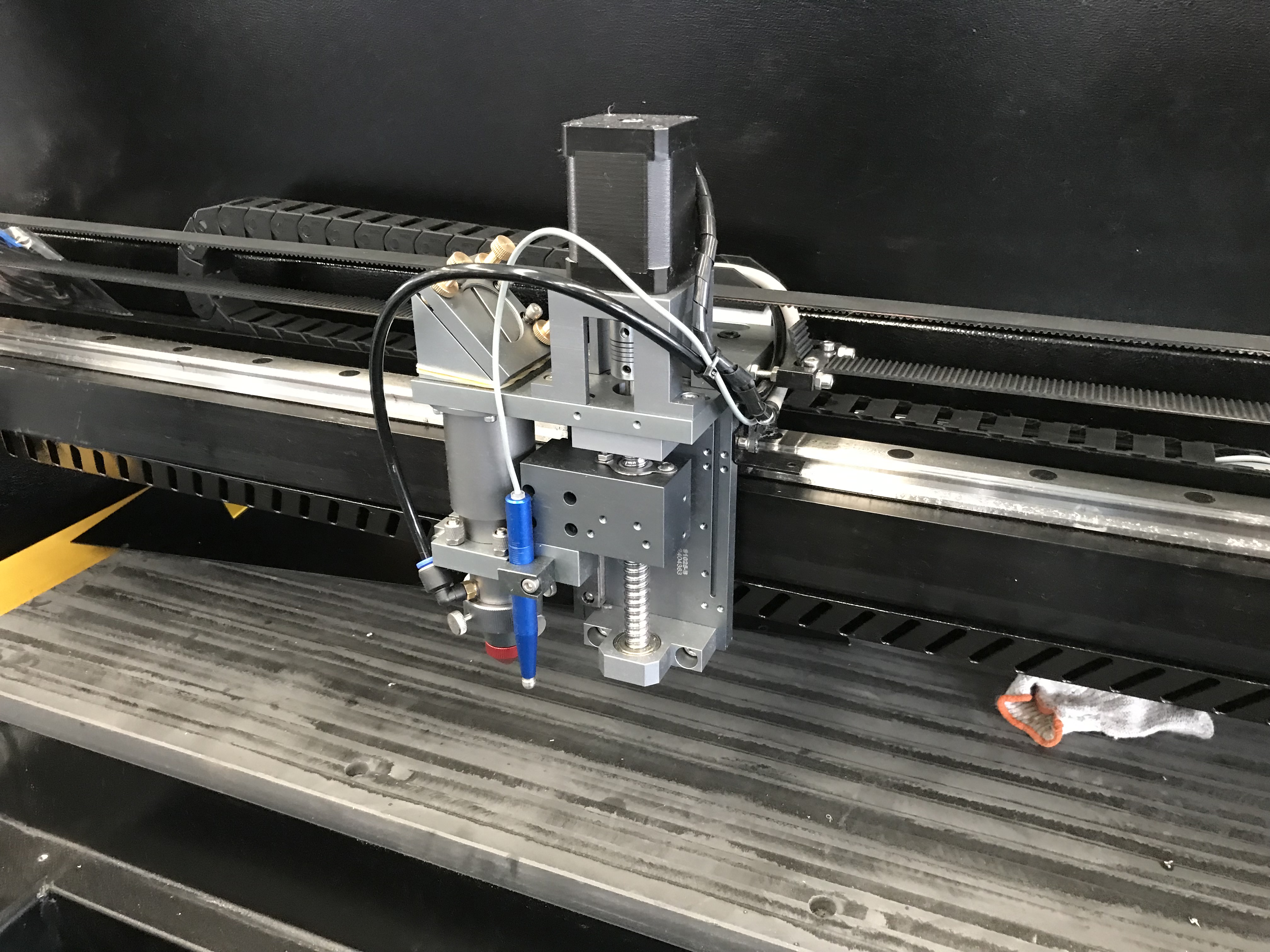

| Laser type | Sealed CO2 laser tube |
| Laser power | 60W-600W laser tube |
| Cutting area | 1300*2500mm |
| Resetting position accuracy | +/-0.05mm |
| Working voltage | AC110-220V +/-10%.50-60HZ |
| Power | 2500W max |
| Operating temperature | 0-45 degree |
| Operating humidity | 5-95% |
| Minimum shaping character | English 1*1mm |
| Graphic format supported | BMP, PLT, DST, DXF, and AI |
| Driving system | Leadshine stepper Driving |
| Cooling mode | Water-cooling and protection system |
| Auxiliary equipment | Exhaust-fan, air-exhaust pipe, Air compressor |
| Controlling system | Ruida control system |
| Compatible software | Coreldraw auto CAD photoshop |
| Laser type | Sealed CO2 laser tube |
| Resetting position accuracy | +/-0.05mm |
| Working voltage | AC110-220V +/-10%.50-60HZ |
